0.50 Tonnes Green Screw Pin Shackle
£5.19 inc. VAT
In Stock| Quantity | Price |
|---|---|
| 10 - 50 | £4.93 |
| 50 - 100 | £4.67 |
| 100 - 200 | £4.41 |
| 200 - 500 | £4.15 |
What's Delivered?
| Shackle | x1 |
|---|

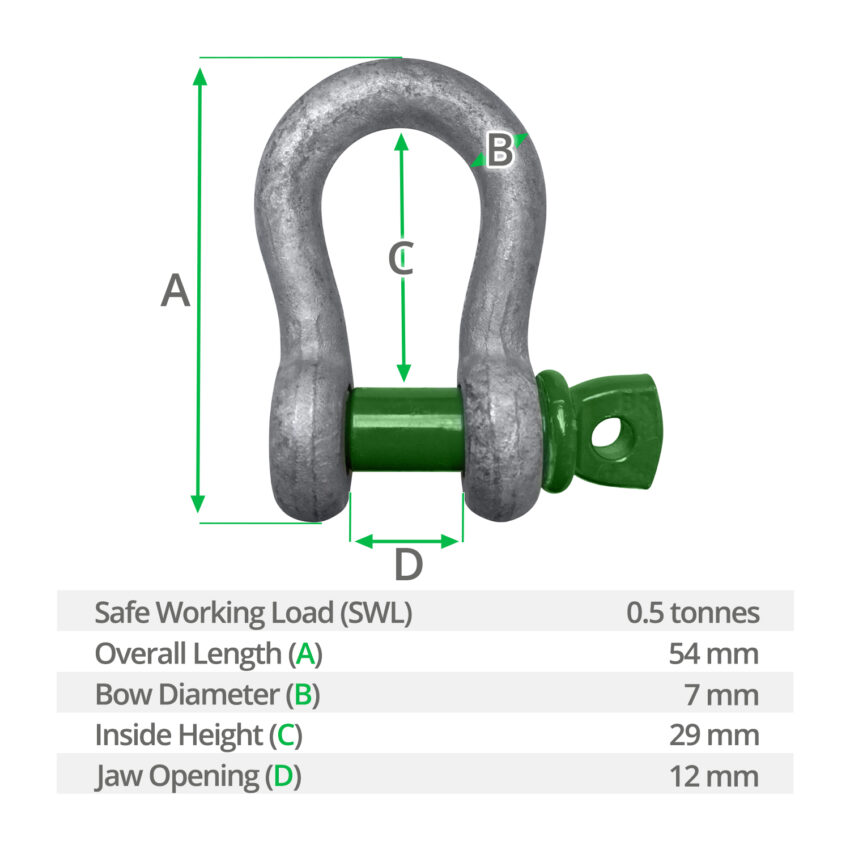

Measurements
| Overall Length (A) | 54mm |
|---|---|
| Bow Diameter (B) | 7mm |
| Inside Height (C) | 29mm |
| Jaw Opening (D) | 12mm |
Strength & Environment
| Suited to Indoor Use | Yes |
|---|---|
| Suited to Outdoor Use | Yes |
| Corrosion Resistant | Yes |
| UV Resistant | Yes |
| Can Withstand Salt Water | No |
| Safe Working Load (SWL) | 0.5 tonnes |
| Safe Working Load Tested | Yes – conforms to US Standard RR C 272 |
Applications
| Non-Critical Lifting | Yes |
|---|---|
| Overhead Lifting | Yes |
| Non Critical Rigging | Yes |
| Critical Applications | Yes |
| Winching | Yes |
| Lift Heavy Loads | Yes |
| Connect Ropes to Objects | Yes |
Installation
| Tools Required | None |
|---|---|
| Accessories Required | None |
| Attach to Rope | Rope threads through the shackle or attach via eye splice |
| Ease of Use | Easy |
Look & Feel
| Handling | Hard & smooth |
|---|---|
| Colour | Silver with green pin |
Construction
| Material | Hot dip galvanised steel |
|---|
